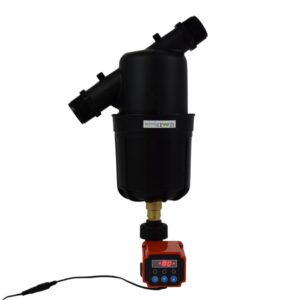

Irrigation automatic purge screen filter, 130 microns, 2 inch – maxi

Description

The filter can be used for mechanical filtration, both irrigation systems and industrial.

130 filtration degree – recommended for the protection of pipes, pumps, irrigation systems.

Screen cartridge – recommended for wheel / drill water. Commonly used to remove sand.

Applications:

• Factories – processed water, water for food & beverage, bottled water (along with other equipment)
• 1st stage placed before other filtration systems.
• Irrigations – agriculture, viticulture;

Technical specifications:

Dimensions: H: 280mm; D: 120mm;
Distance between threads: 270mm
Flow rate: 25 m3/h
Filtration area: 515 cm2
Inlet/Outlet: 2”, exterior thread
Purge valve: ½”
Body material: plastic

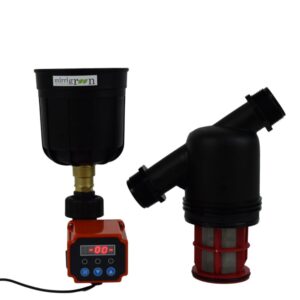

Screen cartridge: SS304 stainless steel with plastic support
Maximum water temperature: 60°C
Maximum pressure: 8 bar.

Other information:

The purge time can be set to a minimum of 15 seconds.

The filtration period without purge can be set to a maximum of 16 hours.

Automatic purge operating conditions:

• 220V electric power;
• Drain for purged water.

There is no need to replace the cartridge. It can be cleaned / washed. On request, a replaceable cartridge can be delivered.

Warranty: two years for natural persons and a year for legal persons.
